Load securing

Strong hold – low film consumption:

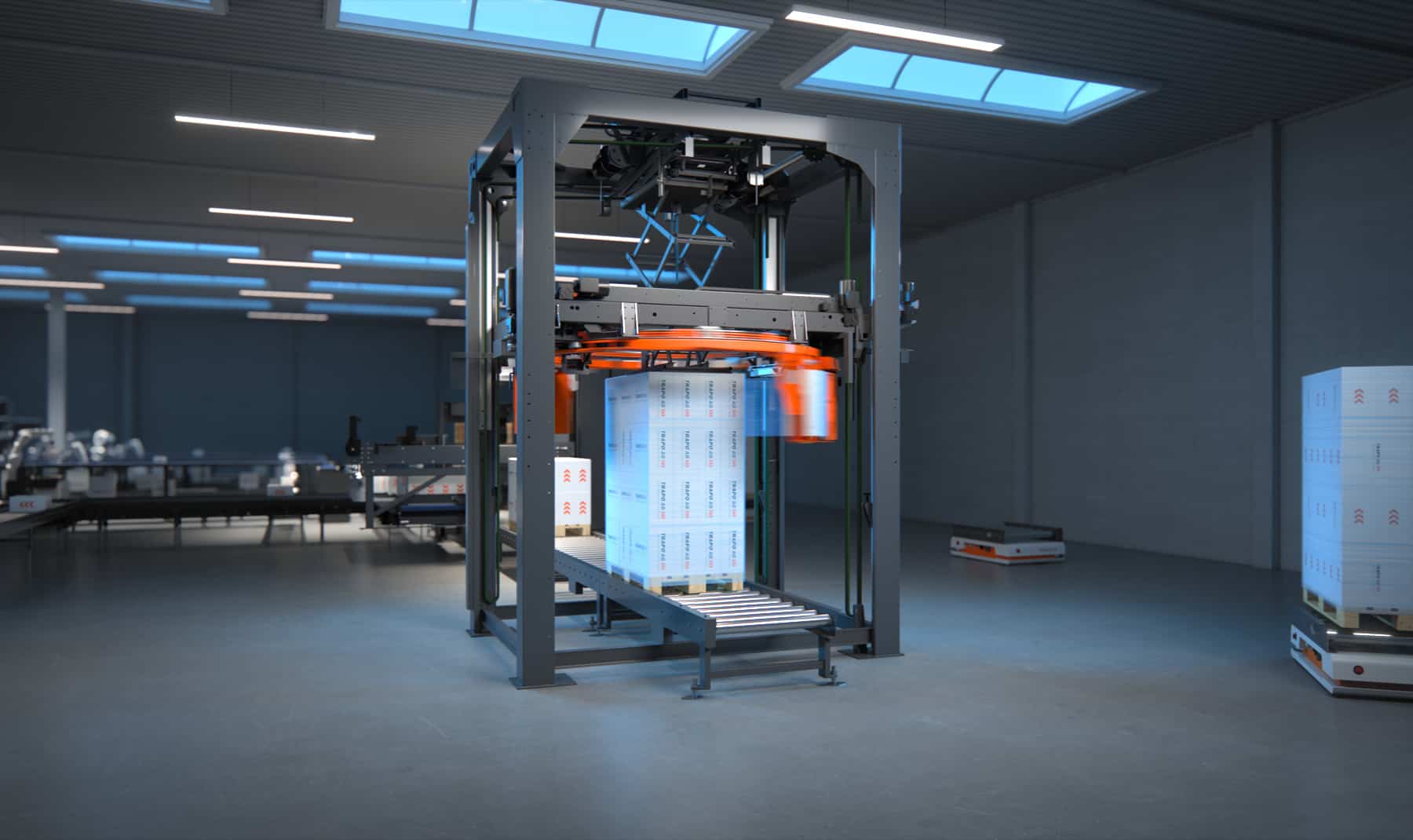

Wrapper for pallet load

The TRAPO Stretch Wrapper (TSW series) enables fully-automatic, sustainable securing of palletized cargo. While the pallet is stationary, the film is wrapped around the load at high speed.

After pallet-feeding, the wrapping cycle starts automatically. The machine is designed for continuous operation with very high wrapping capacity – for users with equally high levels of requirement.

The Stretch Wrapper provides perfect fixation of goods stacked on the pallet – with minimum film consumption. It allows flexible applications with different palletized goods. Thus, adapted programs can run one after the other with fluent transition.

On request, the machine can also be equipped with a holding mechanism for unstable goods.

Advantages

  • High packaging capacity
  • Increased packaging output due to the use of two pre-tensioning devices
  • Low film consumption
  • Integration into conveyor lines
  • Neither the pallet nor the goods are subjected to dynamic forces

The TRAPO Stretch Wrapper in action

Technical details

Performance:
Packaging capacity of up to 138 pallets per hour.

Dimensions:
3.34m width x 3m length (standard machine)

Power supply:
3x400V, 50Hz

Fully-automatic machine for integration into conveyor lines

Pallet dimensions of min. 600 x 600mm and max. 1205 x 1250mm

Additional holding mechanism for unstable goods.

Care:
The film is wrapped around the load at high speed. During this process, there are no dynamic forces on either the pallet or the goods.

Increased performance due to the use of two pre-tensioning devices

Low film consumption
