Automated guided vehicles

Driverless transport system
with customized structure

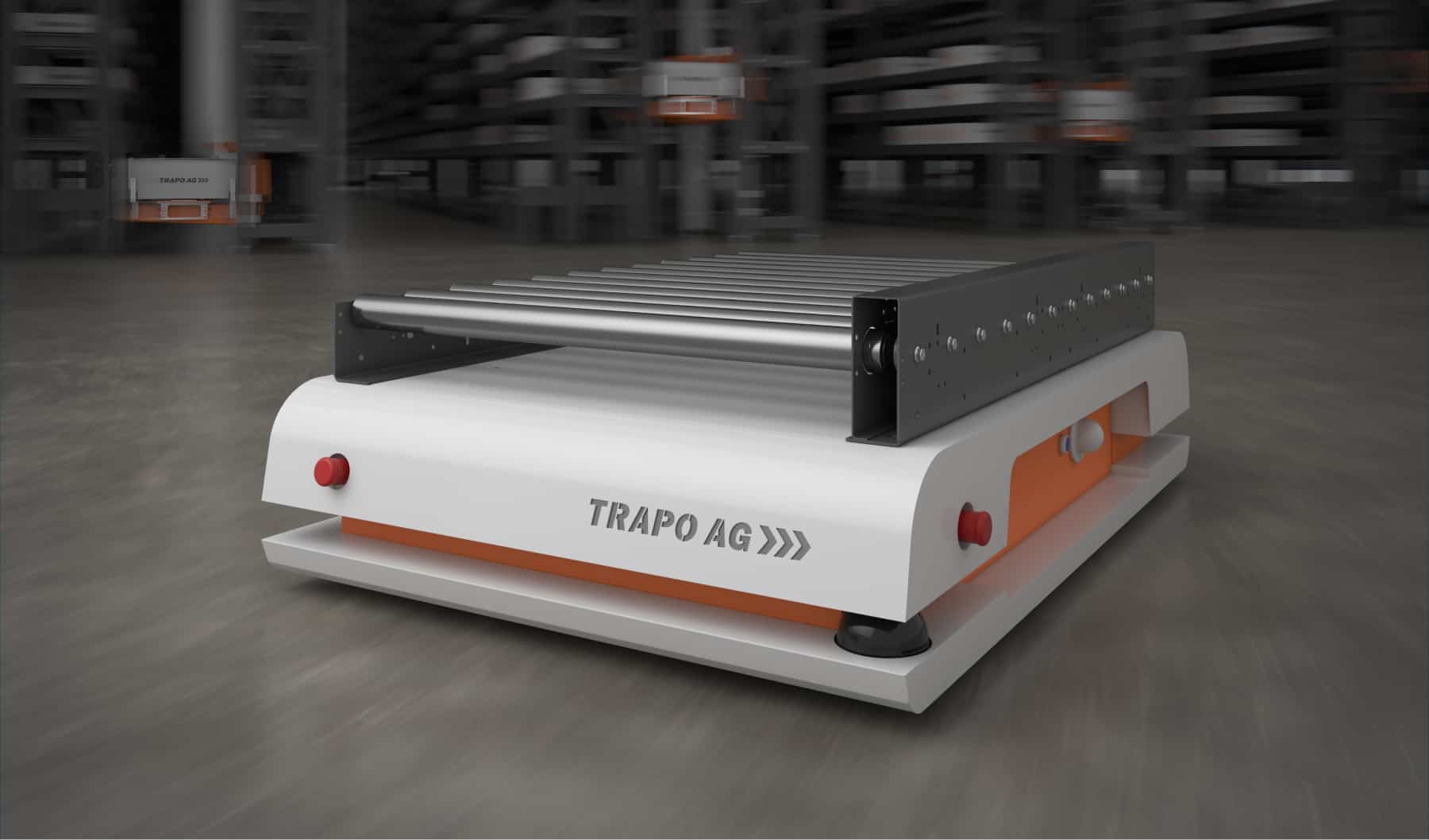

The use of automated guided vehicles such as the TRAPO Transport Shuttle (TTS series) makes it possible to move pallets flexibly from production or the warehouse to the loading bays. At the same time, the entire area remains free of rigid conveyor technology, enabling flexible use of the space.

The TRAPO Transport Shuttle (TTS), for example, transports loads weighing up to 3000 kg and can be equipped with customer-specific attachments such as an additional conveyor or integrated lifting function, depending on the company’s needs. The Transport Shuttle offers a choice of inductive, autonomous or optical navigation – and thus the widest possible range of applications.

Shuttle plus HRI competence

The combination of an automated guided vehicle and a cobot promises maximum flexibility. Two requirements of the packaging industry are combined in one system: Equipped with an MRK robot, the TRAPO Transport Shuttle (TTS series) is spatially absolutely flexible when the robot is used as an additional hand of the human colleague. It conveys, (de)palletizes, forms exact layers and packs.

Advantages

  • Replaces and complements rigid conveyor systems – more space and flexibility
  • Various designs, loads and speeds
  • Modular system
  • Mechanically one structure, control-technically one system
  • Single application and as a swarm or fleet
  • Special design Hygienic design
  • Capacity increase via additional TTS, Warehouse Shuttle and LIFT
  • Control and traffic light function via TIM, the TRAPO IntElligent ManagementSystem

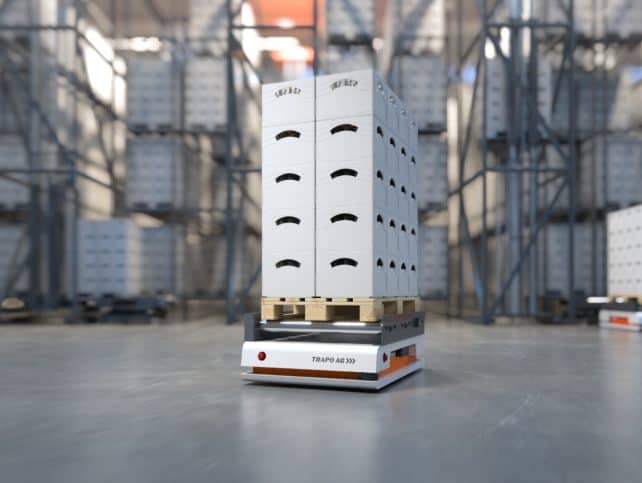

TTS mit Kisten Safe pallet transport between production, warehouse and loading dock.

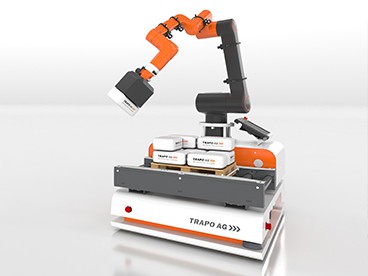

MRK Cobots TRAPO AG Shuttle with HRI-capable assistance robot on request.
TTS mit Eimer Flexible shuttles transport different containers such as buckets, bags, cartons and more.

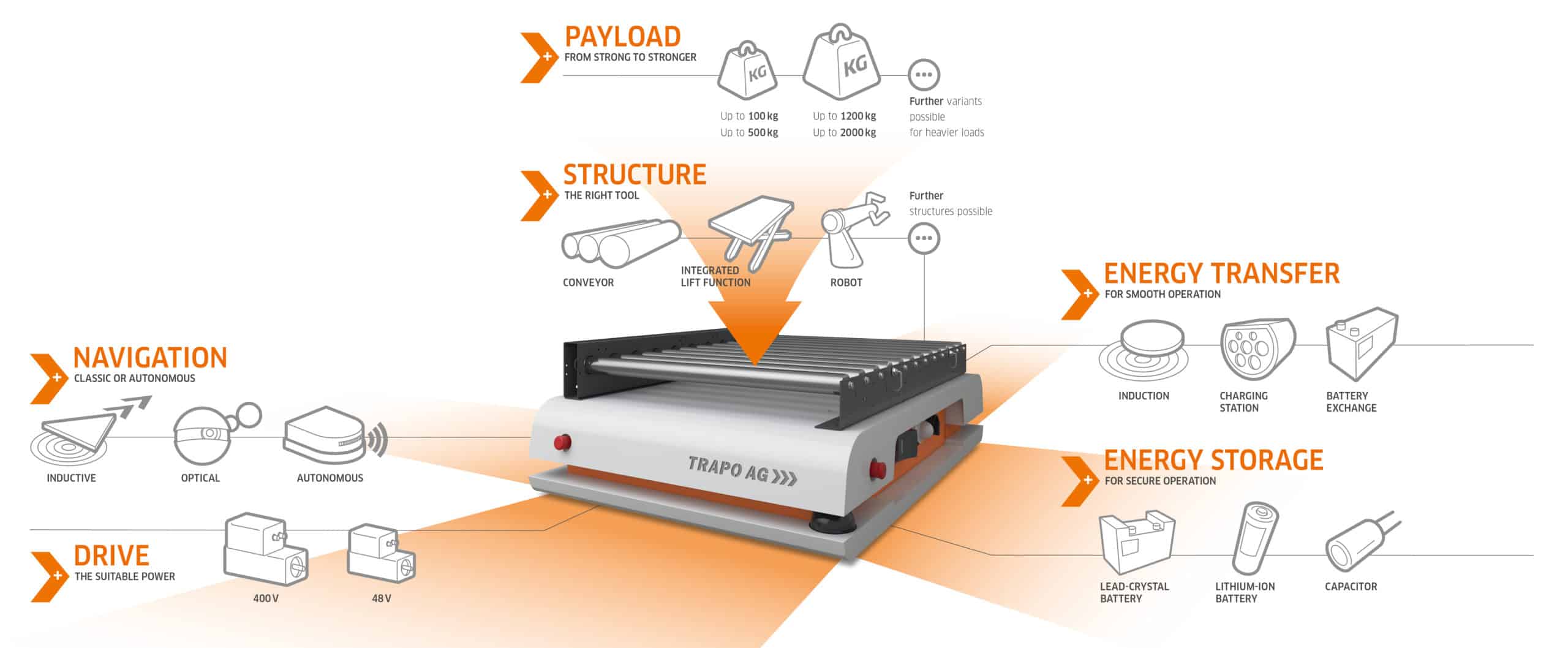

TTS Details

The TRAPO Transport Shuttle in action

Technical details

  • TTS 100 (up to 100 kg payload)
  • TTS 500 (up to 500 kg payload)
  • TTS 1200 (up to 1,200 kg payload)
  • TTS 2000 (up to 2,000 kg payload)
  • TTS 3000 (up to 3,000 kg payload)

Performance:
Maximum capacity per loading operation: three pallets of 1.200 kg each.

Dead weight without body:

  • TTS 100: up to 100kg
  • TTS 500:  up to 500 kg
  • TTS 1200: up to 1200 kg
  • TTS 2000: up to 2000 kg
  • TTS 3000: up to 3000 jkg

Dimensions (TTS 1200):
approx. 1400mm x 1000mm x 300mm

Dimensions (TTS 3000):
approx. 2572mm x 1350mm x 300mm

Navigation:

  • Inductive
  • Optical
  • Autonomous

Operator:
400V or 48V

Power transmission:

  • Induction
  • Charging station

Energy storage:

  • Lithium-ion battery
  • Capacitor

Driving speed:
1 meter/second

Constructions:

  • Conveyor
  • Lifting function
  • MRK-capable robot
  • Customized
  • Mecanum wheels for surface-directional movement

From a single source:

No internal interfaces, one mechanical structure, one control system

For the care sector in stainless steel design

Use as swarm or fleet; control and traffic light function via TIM, the TRAPO Intelligent Management System
